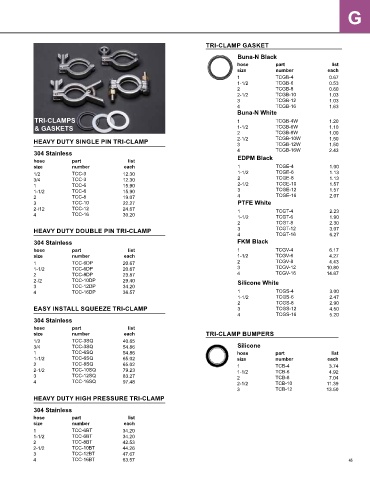

Page 47 - Campbell Fittings

G

TRI-CLAMP GASKET

Buna-N Black
hose part list
size number each
1 TCGB-4 0.67
1-1/2 TCGB-6 0.53
2 TCGB-8 0.60
2-1/2 TCGB-10 1.03
3 TCGB-12 1.03
4 TCGB-16 1.63
Buna-N White
TRI-CLAMPS 1 TCGB-4W 1.20
& GASKETS 1-1/2 TCGB-6W 1.10
2 TCGB-8W 1.00
HEAVY DUTY SINGLE PIN TRI-CLAMP 2-1/2 TCGB-10W 1.50
TCGB-12W
3
1.50
304 Stainless 4 TCGB-16W 2.43
hose part list EDPM Black
size number each 1 TCGE-4 1.00
1/2 TCC-3 12.30 1-1/2 TCGE-6 1.13
3/4 TCC-3 12.30 2 TCGE-8 1.13
1 TCC-6 15.90 2-1/2 TCGE-10 1.57
1-1/2 TCC-6 15.90 3 TCGE-12 1.57
2 TCC-8 19.07 4 TCGE-16 2.07
3 TCC-10 22.27 PTFE White
2-/12 TCC-12 24.67 1 TCGT-4 2.23
4 TCC-16 30.20 1-1/2 TCGT-6 1.90
2 TCGT-8 2.30
HEAVY DUTY DOUBLE PIN TRI-CLAMP 3 TCGT-12 3.07
4 TCGT-16 6.27
304 Stainless FKM Black
hose part list 1 TCGV-4 6.17
size number each 1-1/2 TCGV-6 4.27
1 TCC-6DP 20.67 2 TCGV-8 4.43
1-1/2 TCC-6DP 20.67 3 TCGV-12 10.80
2 TCC-8DP 23.87 4 TCGV-16 14.87
2-/2 TCC-10DP 29.40 Silicone White
3 TCC-12DP 34.20
4 TCC-16DP 36.57 1 TCGS-4 3.00
1-1/2 TCGS-6 2.47
2 TCGS-8 2.90
EASY INSTALL SQUEEZE TRI-CLAMP 3 TCGS-12 4.50
4 TCGS-16 5.20
304 Stainless
hose part list
size number each TRI-CLAMP BUMPERS
1/2 TCC-3SQ 40.65
3/4 TCC-3SQ 54.86 Silicone
1 TCC-6SQ 54.86 hose part list
1-1/2 TCC-6SQ 65.02 size number each
2 TCC-8SQ 65.02 1 TCB-4 3.74
2-1/2 TCC-10SQ 79.23 1-1/2 TCB-6 4.92
3 TCC-12SQ 83.27 2 TCB-8 7.04
4 TCC-16SQ 97.48 2-1/2 TCB-10 11.39
3 TCB-12 13.50
HEAVY DUTY HIGH PRESSURE TRI-CLAMP

304 Stainless
hose part list
size number each
1 TCC-6BT 34.20
1-1/2 TCC-6BT 34.20
2 TCC-8BT 42.53
2-1/2 TCC-10BT 44.26
3 TCC-12BT 47.67
4 TCC-16BT 63.57 45
