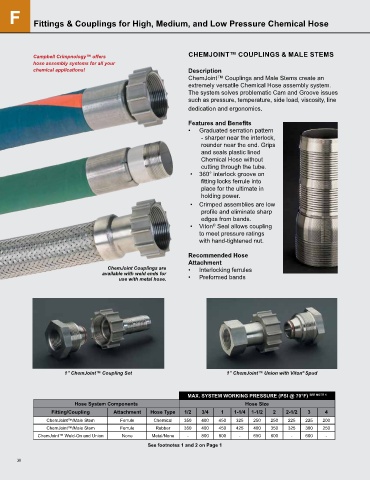

F Fittings & Couplings for High, Medium, and Low Pressure Chemical Hose

CHEMJOINT™ COUPLINGS & MALE STEMS
Campbell Crimpnology™ offers
hose assembly systems for all your
chemical applications! Description
ChemJoint™ Couplings and Male Stems create an
extremely versatile Chemical Hose assembly system.
The system solves problematic Cam and Groove issues
such as pressure, temperature, side load, viscosity, line
dedication and ergonomics.
Features and Benefits
• Graduated serration pattern
- sharper near the interlock,
rounder near the end. Grips
and seals plastic lined
Chemical Hose without
cutting through the tube.
• 360° interlock groove on
fitting locks ferrule into
place for the ultimate in
holding power.
• Crimped assemblies are low
profile and eliminate sharp
edges from bands.
• Viton Seal allows coupling
®
to meet pressure ratings
with hand-tightened nut.

Recommended Hose
Attachment
ChemJoint Couplings are • Interlocking ferrules
available with weld ends for
use with metal hose. • Preformed bands

1” ChemJoint™ Coupling Set 1” ChemJoint™ Union with Viton Spud
®

MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
ChemJoint™/Male Stem Ferrule Chemical 350 400 450 325 250 250 225 225 200
ChemJoint™/Male Stem Ferrule Rubber 350 400 450 425 400 350 325 300 250
ChemJoint™ Weld-On and Union None Metal/None - 800 800 - 650 600 - 600 -
See footnotes 1 and 2 on Page 1

38
