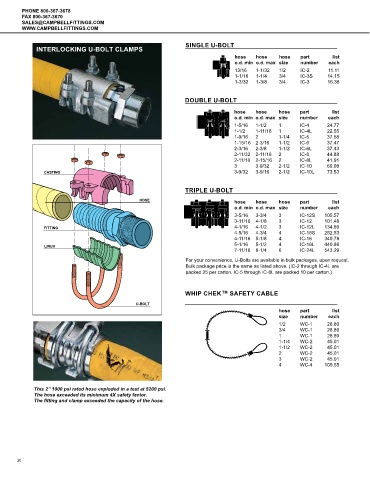

Page 32 - Campbell Fittings

PHONE 800-367-3678
FAX 800-367-3670
SALES@CAMPBELLFITTINGS.COM
WWW.CAMPBELLFITTINGS.COM

SINGLE U-BOLT
INTERLOCKING U-BOLT CLAMPS
hose hose hose part list
o.d. min o.d. max size number each
13/16 1-1/32 1/2 IC-2 11.11
1-1/16 1-1/4 3/4 IC-3S 14.15
1-3/32 1-3/8 3/4 IC-3 16.38

DOUBLE U-BOLT
hose hose hose part list
o.d. min o.d. max size number each
1-5/16 1-1/2 1 IC-4 24.77
1-1/2 1-11/16 1 IC-4L 22.55
1-9/16 2 1-1/4 IC-5 37.58
1-15/16 2-3/16 1-1/2 IC-6 37.47
2-3/16 2-3/8 1-1/2 IC-6L 37.43
2-11/32 2-11/16 2 IC-8 44.88
2-11/16 2-15/16 2 IC-8L 41.91
3 3-9/32 2-1/2 IC-10 60.08
CASTING 3-9/32 3-9/16 2-1/2 IC-10L 73.53

TRIPLE U-BOLT

HOSE hose hose hose part list
o.d. min o.d. max size number each
3-5/16 3-3/4 3 IC-12S 105.57
3-11/16 4-1/8 3 IC-12 101.48
FITTING 4-1/16 4-1/2 3 IC-12L 134.60
4-5/16 4-3/4 4 IC-16S 252.53
4-11/16 5-1/8 4 IC-16 340.78
LINER 5-1/16 5-1/2 4 IC-16L 440.86
7-11/16 8-1/4 6 IC-24L 543.29
For your convenience, U-Bolts are available in bulk packages, upon request.
Bulk package price is the same as listed above. (IC-2 through IC-4L are
packed 25 per carton. IC-5 through IC-8L are packed 10 per carton.)

WHIP CHEK™ SAFETY CABLE
U-BOLT
hose part list
size number each
1/2 WC-1 28.80
3/4 WC-1 28.80
1 WC-1 28.80
1-1/4 WC-2 45.01
1-1/2 WC-2 45.01
2 WC-2 45.01
3 WC-2 45.01
4 WC-4 109.55

This 2” 1000 psi rated hose exploded in a test at 5200 psi.
The hose exceeded its minimum 4X safety factor.
The fitting and clamp exceeded the capacity of the hose.

30
