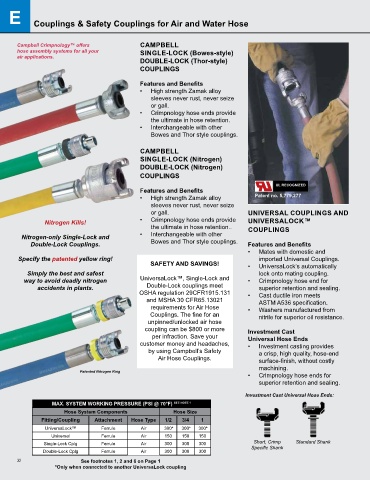

E Couplings & Safety Couplings for Air and Water Hose

Campbell Crimpnology™ offers CAMPBELL
hose assembly systems for all your SINGLE-LOCK (Bowes-style)
air applications.
DOUBLE-LOCK (Thor-style)
COUPLINGS

Features and Benefits
• High strength Zamak alloy
sleeves never rust, never seize
or gall.
• Crimpnology hose ends provide
the ultimate in hose retention.
• Interchangeable with other
Bowes and Thor style couplings.

CAMPBELL
SINGLE-LOCK (Nitrogen)
DOUBLE-LOCK (Nitrogen)
COUPLINGS

UL RECOGNIZED
Features and Benefits
• High strength Zamak alloy Patent no. 5,779,277
sleeves never rust, never seize
or gall. UNIVERSAL COUPLINGS AND
Nitrogen Kills! • Crimpnology hose ends provide UNIVERSALOCK™
the ultimate in hose retention.. COUPLINGS
Nitrogen-only Single-Lock and • Interchangeable with other
Double-Lock Couplings. Bowes and Thor style couplings. Features and Benefits
• Mates with domestic and
Specify the patented yellow ring! imported Universal Couplings.
SAFETY AND SAVINGS! • UniversaLock’s automatically
Simply the best and safest lock onto mating coupling.
way to avoid deadly nitrogen UniversaLock™, Single-Lock and • Crimpnology hose end for
accidents in plants. Double-Lock couplings meet superior retention and sealing.
OSHA regulation 29CFR1915.131 • Cast ductile iron meets
and MSHA 30 CFR65.13021 ASTM A536 specification.
requirements for Air Hose • Washers manufactured from
Couplings. The fine for an nitrile for superior oil resistance.
unpinned/unlocked air hose
coupling can be $800 or more Investment Cast
per infraction. Save your Universal Hose Ends
customer money and headaches, • Investment casting provides
by using Campbell’s Safety a crisp, high quality, hose-end
Air Hose Couplings. surface-finish, without costly
machining.
Patented Nitrogen Ring
• Crimpnology hose ends for
superior retention and sealing.

Investment Cast Universal Hose Ends:
MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 1/2 3/4 1
UniversaLock™ Ferrule Air 300* 300* 300*
Universal Ferrule Air 150 150 150
Short, Crimp
Single-Lock Cplg Ferrule Air 300 300 300 Specific Shank Standard Shank
Double-Lock Cplg Ferrule Air 300 300 300
32 See footnotes 1, 2 and 6 on Page 1
*Only when connected to another UniversaLock coupling
