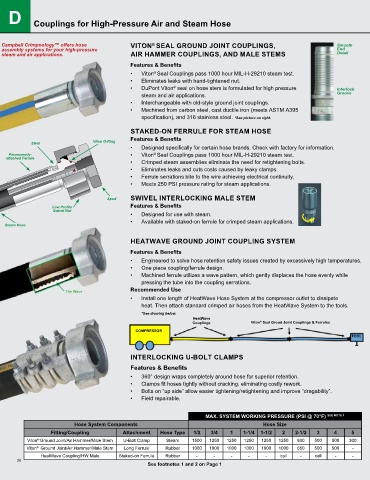

D Couplings for High-Pressure Air and Steam Hose

®
Campbell Crimpnology™ offers hose VITON SEAL GROUND JOINT COUPLINGS, Smooth
assembly systems for your high-pressure End
steam and air applications. AIR HAMMER COUPLINGS, AND MALE STEMS Detail
Features & Benefits
• Viton Seal Couplings pass 1000 hour MIL-H-29210 steam test.
®
• Eliminates leaks with hand-tightened nut.
• DuPont Viton seal on hose stem is formulated for high pressure Interlock
®
steam and air applications. Groove
• Interchangeable with old-style ground joint couplings.
• Machined from carbon steel, cast ductile iron (meets ASTM A395
specification), and 316 stainless steel. *See picture on right.
STAKED-ON FERRULE FOR STEAM HOSE
Features & Benefits
Stem Viton O-Ring
• Designed specifically for certain hose brands. Check with factory for information.
®
Permanently- • Viton Seal Couplings pass 1000 hour MIL-H-29210 steam test.
attached Ferrule
• Crimped steam assemblies eliminate the need for retightening bolts.
• Eliminates leaks and cuts costs caused by leaky clamps.
• Ferrule serrations bite to the wire achieving electrical continuity.
• Meets 250 PSI pressure rating for steam applications.

Spud SWIVEL INTERLOCKING MALE STEM
Low Profile Features & Benefits
Swivel Nut
• Designed for use with steam.
• Available with staked-on ferrule for crimped steam applications.
Steam Hose

HEATWAVE GROUND JOINT COUPLING SYSTEM
Features & Benefits
• Engineered to solve hose retention safety issues created by excessively high temperatures.
• One piece coupling/ferrule design.
• Machined ferrule utilizes a wave pattern, which gently displaces the hose evenly while
pressing the tube into the coupling serrations.
Recommended Use
The Wave
• Install one length of HeatWave Hose System at the compressor outlet to dissipate
heat. Then attach standard crimped air hoses from the HeatWave System to the tools.
*See drawing below.
HeatWave
Couplings Viton Seal Groud Joint Couplings & Ferrules
®
COMPRESSOR
TOOL

INTERLOCKING U-BOLT CLAMPS
Features & Benefits
• 360° design wraps completely around hose for superior retention.
• Clamps fit hoses tightly without cracking, eliminating costly rework.
• Bolts on “up side” allow easier tightening/retightening and improve “dragability”.
• Field repairable.

MAX. SYSTEM WORKING PRESSURE (PSI @ 70°F) SEE NOTE 1
Hose System Components Hose Size
Fitting/Coupling Attachment Hose Type 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5
®
Viton Ground Joint/Air Hammer/Male Stem U-Bolt Clamp Steam 1500 1250 1250 1250 1250 1250 800 500 500 300
Viton Ground Joint/Air Hammer/Male Stem Long Ferrule Rubber 1000 1000 1000 1000 1000 1000 650 500 500 -
®
HeatWave Coupling/HW Male Staked-on Ferrule Rubber - - - - - call - call - -
26
See footnotes 1 and 2 on Page 1
