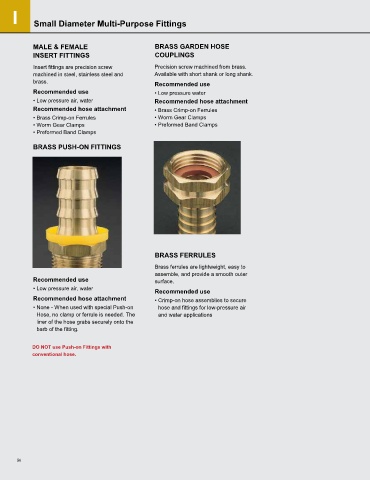

I Small Diameter Multi-Purpose Fittings

MALE & FEMALE BRASS GARDEN HOSE
INSERT FITTINGS COUPLINGS

Insert fittings are precision screw Precision screw machined from brass.
machined in steel, stainless steel and Available with short shank or long shank.
brass. Recommended use
Recommended use • Low pressure water
• Low pressure air, water Recommended hose attachment
Recommended hose attachment • Brass Crimp-on Ferrules
• Brass Crimp-on Ferrules • Worm Gear Clamps
• Worm Gear Clamps • Preformed Band Clamps
• Preformed Band Clamps

BRASS PUSH-ON FITTINGS

BRASS FERRULES
Brass ferrules are lightweight, easy to
assemble, and provide a smooth outer
Recommended use surface.
• Low pressure air, water Recommended use
Recommended hose attachment • Crimp-on hose assemblies to secure
• None - When used with special Push-on hose and fittings for low-pressure air
Hose, no clamp or ferrule is needed. The and water applications
liner of the hose grabs securely onto the
barb of the fitting.

DO NOT use Push-on Fittings with
conventional hose.

56
