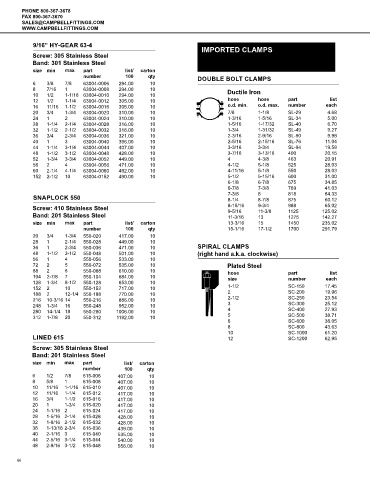

Page 68 - Campbell Fittings

PHONE 800-367-3678
FAX 800-367-3670
SALES@CAMPBELLFITTINGS.COM
WWW.CAMPBELLFITTINGS.COM

9/16” HY-GEAR 63-4 IMPORTED CLAMPS

Screw: 305 Stainless Steel
Band: 301 Stainless Steel
size min max part list/ carton
number 100 qty DOUBLE BOLT CLAMPS
6 3/8 7/8 63004-0006 294.00 10
8 7/16 1 63004-0008 294.00 10 Ductile Iron
10 1/2 1-1/16 63004-0010 294.00 10
12 1/2 1-1/4 63004-0012 305.00 10 hose hose part list
16 11/16 1-1/2 63004-0016 305.00 10 o.d. min. o.d. max. number each
20 3/4 1-3/4 63004-0020 310.00 10 7/8 1-1/8 SL-29 4.68
24 1 2 63004-0024 310.00 10 1-3/16 1-5/16 SL-34 5.00
28 1-1/4 2-1/4 63004-0028 316.00 10 1-5/16 1-17/32 SL-40 6.70
32 1-1/2 2-1/2 63004-0032 316.00 10 1-3/4 1-31/32 SL-49 9.27
36 3/4 2-3/4 63004-0036 321.00 10 2-3/16 2-9/16 SL-60 9.98
40 1 3 63004-0040 396.00 10 2-5/16 2-15/16 SL-76 11.04
44 1-1/4 3-1/4 63004-0044 407.00 10 3-3/16 3-3/4 SL-94 19.58
48 1-1/2 3-1/2 63004-0048 428.00 10 3-7/16 3-13/16 400 20.15
52 1-3/4 3-3/4 63004-0052 449.00 10 4 4-3/8 463 20.91
56 2 4 63004-0056 471.00 10 4-1/2 5-1/8 525 28.03
60 2-1/4 4-1/4 63004-0060 492.00 10 4-11/16 5-1/8 550 28.03
152 2-1/2 10 63004-0152 490.00 10 5-1/2 5-15/16 600 31.00
6-1/8 6-7/8 675 34.85
6-7/8 7-3/8 769 41.03
7-3/8 8 818 64.33
SNAPLOCK 550 8-1/4 8-7/8 875 60.12
65.02
Screw: 410 Stainless Steel 8-15/16 9-3/4 988 125.02
1125
9-5/16
11-3/8
Band: 201 Stainless Steel 11-3/16 13 1275 142.27
size min max part list/ carton 13-3/16 15 1450 235.02
number 100 qty 15-1/16 17-1/2 1700 291.79
20 3/4 1-3/4 550-020 417.00 10
28 1 2-1/4 550-028 449.00 10
36 1 2-3/4 550-036 471.00 10 SPIRAL CLAMPS
48 1-1/2 3-1/2 550-048 501.00 10 (right hand a.k.a. clockwise)
56 1 4 550-056 533.00 10
72 2 5 550-072 535.00 10 Plated Steel
88 2 6 550-088 610.00 10 hose part list
104 2-7/8 7 550-104 684.00 10 size number each
128 1-3/4 8-1/2 550-128 653.00 10
152 2 10 550-152 717.00 10 1-1/2 SC-150 17.45
188 2 12-1/4 550-188 770.00 10 2 SC-200 19.96
216 10-3/16 14 550-216 886.00 10 2-1/2 SC-250 23.54
248 1-3/4 16 550-248 952.00 10 3 SC-300 25.12
280 14-1/4 18 550-280 1006.00 10 4 SC-400 27.93
312 1-7/8 20 550-312 1192.00 10 5 SC-500 38.71
6 SC-600 38.05
8 SC-800 43.63
10 SC-1000 61.20
LINED 615 12 SC-1200 62.95
Screw: 305 Stainless Steel
Band: 201 Stainless Steel
size min max part list/ carton
number 100 qty
6 1/2 7/8 615-006 407.00 10
8 5/8 1 615-008 407.00 10
10 11/16 1-1/16 615-010 407.00 10
12 11/16 1-1/4 615-012 417.00 10
16 3/4 1-1/2 615-016 417.00 10
20 1 1-3/4 615-020 417.00 10
24 1-1/16 2 615-024 417.00 10
28 1-5/16 2-1/4 615-028 428.00 10
32 1-9/16 2-1/2 615-032 428.00 10
36 1-13/16 2-3/4 615-036 439.00 10
40 2-1/16 3 615-040 535.00 10
44 2-5/16 3-1/4 615-044 540.00 10
48 2-9/16 3-1/2 615-048 556.00 10

66
