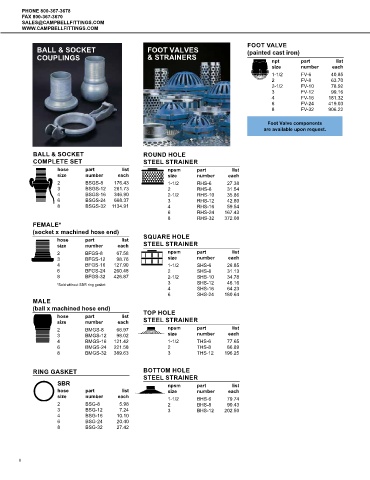

Page 10 - Campbell Fittings

PHONE 800-367-3678
FAX 800-367-3670
[email protected]
WWW.CAMPBELLFITTINGS.COM

FOOT VALVE
BALL & SOCKET FOOT VALVES (painted cast iron)
COUPLINGS & STRAINERS npt part list
size number each
1-1/2 FV-6 40.85
2 FV-8 63.70
2-1/2 FV-10 78.92
3 FV-12 99.16
4 FV-16 181.32
6 FV-24 419.03
8 FV-32 906.22

Foot Valve components
are available upon request.

BALL & SOCKET ROUND HOLE
COMPLETE SET STEEL STRAINER
hose part list npsm part list
size number each size number each
2 BSGS-8 176.43 1-1/2 RHS-6 27.38
3 BSGS-12 261.73 2 RHS-8 31.54
4 BSGS-16 346.90 2-1/2 RHS-10 35.86
6 BSGS-24 668.37 3 RHS-12 42.80
8 BSGS-32 1134.91 4 RHS-16 59.54
6 RHS-24 167.43
8 RHS-32 372.08
FEMALE*
(socket x machined hose end)
hose part list SQUARE HOLE
size number each STEEL STRAINER
2 BFGS-8 67.58 npsm part list
3 BFGS-12 98.76 size number each
4 BFGS-16 127.90 1-1/2 SHS-6 26.85
6 BFGS-24 260.48 2 SHS-8 31.13
8 BFGS-32 426.87 2-1/2 SHS-10 34.78
3 SHS-12 46.16
*Sold without SBR ring gasket
4 SHS-16 64.23
6 SHS-24 180.64
MALE
(ball x machined hose end)
hose part list TOP HOLE
size number each STEEL STRAINER
2 BMGS-8 66.97 npsm part list
3 BMGS-12 98.02 size number each
4 BMGS-16 121.42 1-1/2 THS-6 77.65
6 BMGS-24 221.58 2 THS-8 86.89
8 BMGS-32 389.63 3 THS-12 196.25

RING GASKET BOTTOM HOLE
STEEL STRAINER
SBR npsm part list
hose part list size number each
size number each 1-1/2 BHS-6 79.74
2 BSG-8 5.98 2 BHS-8 90.43
3 BSG-12 7.24 3 BHS-12 202.50
4 BSG-16 10.10
6 BSG-24 20.40
8 BSG-32 27.42
