Hang Mount
Hang Mount
Description

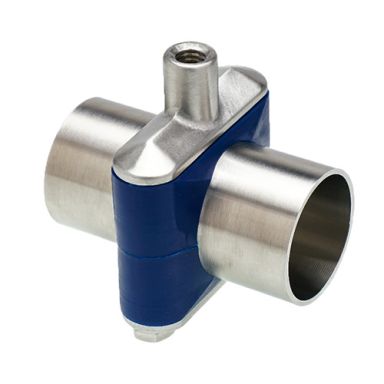

Hang Mount - FOR ATTACHMENT: use Shielded Rod, solid rod with threaded end(s) or all thread rod.

Features:

  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime.
  • There are no exposed threads or openings

Benefits:

  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housings elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement

Applications:

  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semi-conductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines

Materials:

  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber

Specifications:

  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F

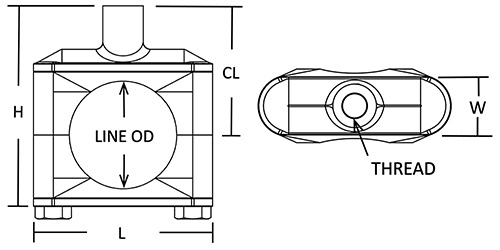

Dimensions
  • Support Range: 1/4” - 6” Tube and 1/2” - 6” Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered


NAME
PART#
Fit
H
L
Line OD
Material
Pipe Size
Thread
Tube Size
W
cl
LIST PRICE
Hang Mount 1/4" Tube Size
-
$32.30
Hang Mount 3/8" Tube Size
-
$32.30
Hang Mount 1/2" Tube Size
0.5
-
$32.30
Hang Mount 3/4" Tube Size
-
$32.30
Hang Mount 1" Tube Size
1
-
1"
$32.30
Hang Mount 1 1/2" Tube Size
1.5
-
1.8
$36.10
Hang Mount 2" Tube Size
2
-
2"
$44.81
Hang Mount 2 1/2" Tube Size
2.5
-
$53.83
Hang Mount 3" Tube Size
3
-
3"
3.3
$62.23
Hang Mount 4" Tube Size
5.1
4
-
4"
1
$80.82
Hang Mount 1/2" Tube Size
0.5
-
$35.82
Hang Mount 3/4" Tube Size
-
$35.82
Hang Mount 1" Tube Size
1
-
1"
$35.82
Hang Mount 1 1/2" Tube Size
1.5
-
1.8
$39.62
Hang Mount 2" Tube Size
2
-
2"
$48.32
Hang Mount 2 1/2" Tube Size
2.5
-
$57.35
Hang Mount 3" Tube Size
3
-
3"
3.3
$65.75
Hang Mount 4" Tube Size
5.1
4
-
4"
1
$84.34
Hang Mount 1/2" Pipe Size
-
$32.30
Hang Mount 3/4" Pipe Size
-
$32.30
