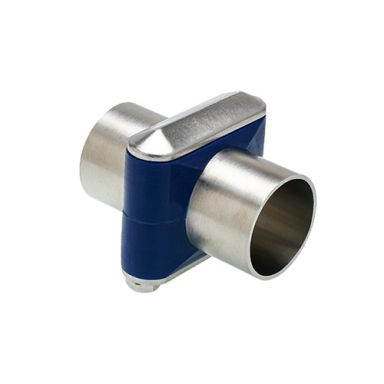

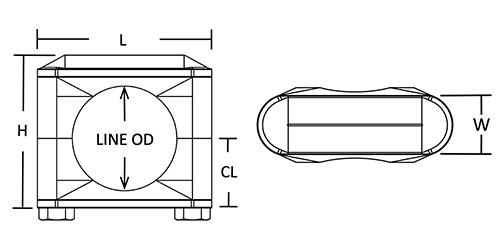

Base Mount - weld mounting rod to bottom plate then to mounting plate or structure.

Features:

• Reduced OD allows hanger to be encased under the insulation’s jacket
• ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime.
• There are no exposed threads or openings

Benefits:

• Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
• Hanger’s threaded section is elongated, increasing the housings elevation adjustment aiding in slope alignment
• Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
• Insulation Thickness: Line’s ODs are Encased Under Insulation
• 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
• 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
• 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
• There are no exposed threads or openings in hardware plates
• All plates are cleaned polished
• Hanger threads match MSS 69 rod OD requirement

Applications:

• Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semi-conductor industries.
• Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines

Materials:

• 304 and 316 stainless steels
• ZERO PUDDLE inserts are FDA grade silicone rubber

Specifications:

• Intermittent temperatures from -40F to 320F
• Continues temperatures from -20F to 302F
